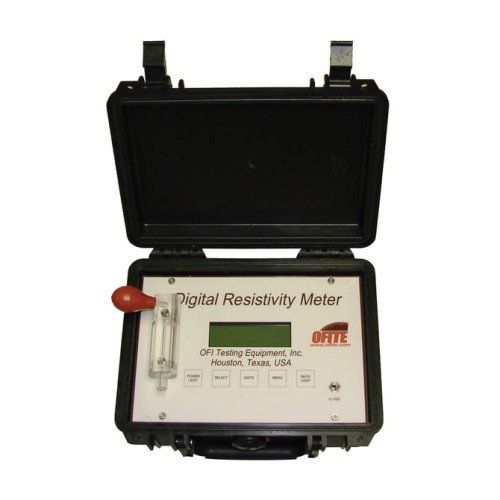

Resistivity Meter, Digital

The OFITE Digital Resistivity Meter accurately measures the resistivity of fluids, slurries, and semisolids having resistivities from 0.01 to 400 ohm-meters. The digital display shows both resistivity
(in ohm-meters) and concentration of NaCl (in ppm, kppm, and gr/gal), as well as temperature (in °C or °F).

Features

• Equipped with a digital readout for higher accuracy
• LCD display makes measurements easy to read
• Built-in calibration tests make calibrations simple
• Automatic NaCl Measurements - no longer have to manually use a nomograph
• Lucite® Cell - transparent and removable, making it easy to clean

Specifications

• Resistivity Range - 0.01 to 400 Ohm-Meters
• Temperature Range - 14 to 140°F (-10 to 60°C)
• NaCl Measurements - ppm, kppm, gr/gal
• NaCl Range - 0.2 to 300 kppm
• Power Requirements - Two 9-Volt Batteries

Components

• #130-76-42: Display
• #130-85-04: Rubber Suction Bulb
• #130-87-05: Resistivity Probe
• #147-02: Battery, 9 Volt, Alkaline
• #165-43: Pipe Cleaner

Optional

• #130-10-30: Power Supply
• #130-87-014: Calibration Fluid, 1,413 µmhos, 1 L
• #130-87-016: Calibration Fluid, 50,000 µmhos, 1 L
• #152-37: AC Power Cord, 115 Volt
• #152-38: AC Power Cord, 230 Volt
