OFI Testing Equipment, Inc. - Mud Balance, 4 Scale, Plastic

Product Code: 100-00

Availability: 26

Attachments:
- 100-00_instructions.pdf
- 100-00_brochure.pdf

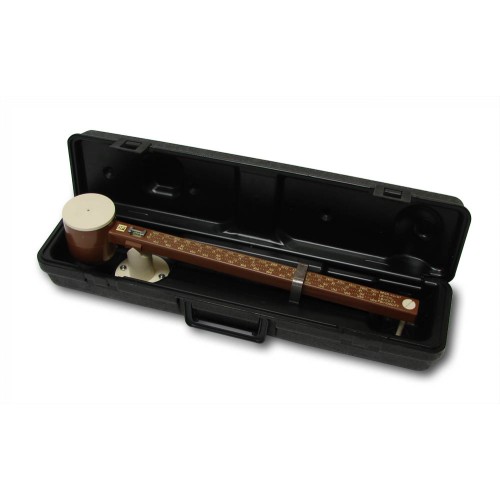

The plastic mud balance is engineered so that the mud cup at one end of the beam is balanced by a fixed counterweight at the other end, with a sliding-weight rider that moves along a graduated scale. A level bubble is mounted on the beam to ensure accurate balancing.

Features

Plastic will not corrode when using corrosive fluids
Full size, full scale mud balance
Two most popular scales are on top for easy reading
Can be easily cleaned
Accurate density analysis
Includes rugged carrying case

Specifications

Density
- 8.0 - 25.0 lb / gal
- 960 - 3000 Specific Gravity, kg/meter³
- 60 - 189 lb /ft³
- 420 - 1300 pounds per inch² / 1000 ft
Size: 21.5" × 5" × 4.5" (55 × 13 × 11 cm)
Weight: 3 lb (1.4 kg)

Components

#100-02: Arm Assembly
#100-04: Leg
#100-05: Screw Plug
#100-10: Base
#100-20: Lid
#100-25: Rider
#100-30: Level Bubble
#100-40: Carrying Case
#100-56: Steel Shot for Calibrating

Optional

#100-01: 4-Scale Plastic Mud Balance Without Case

Part Number

#100-00
