Teflon Liner For Aging Cells
Brand:
OFI Testing Equipment, Inc.
Product Code:
175-60
Availability:
Call for availability
Testing highly corrosive fluids at high temperatures and pressures can cause significant, permanent damage to typical stainless steel aging cells. The OFITE Teflon® Liner is designed to prevent corrosive damage while still providing the same results as a standard aging cell.

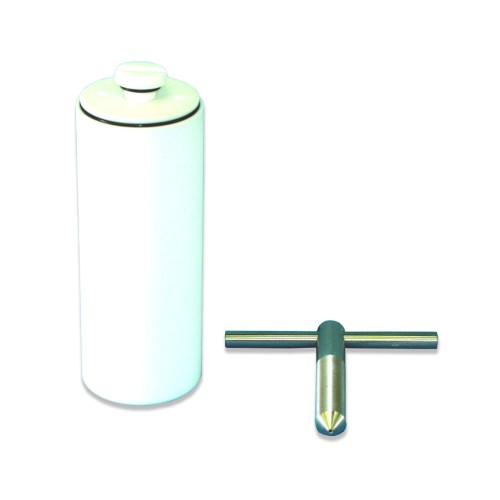

The Teflon® Liner consists of a chamber for the test fluid and a floating piston that pressurizes the sample fluid when the aging cell is pressurized. Included is a T-screw that attaches to a hole in the piston and facilitates removal. A plug seals the hole in the piston during a test to prevent leakage.
Note: Not for use with the Corrosion Test Cell with Coupon Holder (#175-40).
Included Items
- #175-60-1 - Liner Body (For 500 mL Cells)
- #175-60-5 - Liner Body (For 260 mL Cells)
- #175-60-2-1 - Piston
- #175-60-3 - Plug
- #175-60-4 - T-screw
- #175-62 - O-ring for Plug, Viton®
- #175-63 - O-ring for Piston, Viton®
Part Numbers
- #175-60 - Teflon Liner For Aging Cells, 500 mL
- #175-60-6 - Teflon Liner For Aging Cells, 260 mL
