Thermocup without Removable Stainless Steel Cup

Brand: OFI Testing Equipment, Inc.

Product Code: 130-38-20

Availability: 2

Attachments:
- 130-38-20_instructions.pdf
- 130-38-20_brochure.pdf

Available Options

Voltage_130-38-20:
115 Volt (130-38-20)
230 Volt (130-38-25)

Download PDF

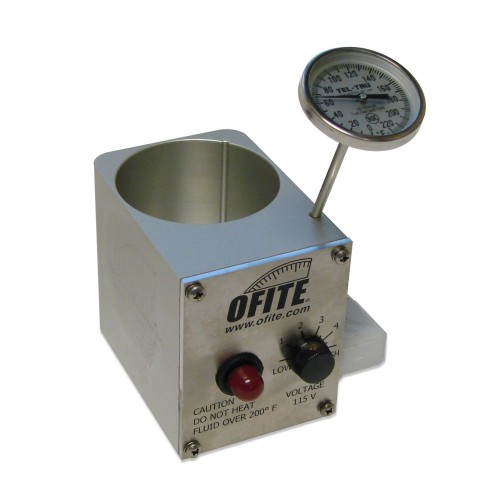

The Thermocup is designed for controlling the temperature of a mud sample while taking readings with a viscometer. The holes in the stage of OFITE Viscometers have been positioned to hold the heated cups at a 45° angle to the line of the instrument for better accommodation of thermometers and power cables. A removable stainless steel cup (optional) makes cleaning safer and easier.

Features

Anodized finish provides better heat transfer than paint
Strain relief on the power cable protects wiring from damage

Components

#130-26: Heating Element, 150 Watt, 115 Volt
#130-26-1: Heating Element, 150 Watt, 230 Volt
#130-31: Thermostat
#130-38-014: Resistor
#130-38-2: Lens for Lamp, Red
#130-38-3: Lamp
#154-00: Thermometer
#171-32: Knob

Optional

130-76-10-10: Cup for Thermocups, Stainless Steel

Specifications

Size: 3” × 4” × 4.5” (8 × 10 × 11 cm)
Weight: 2.6 lb (1.2 kg)

Part Number

#130-38-20: 115 Volt
#130-38-25: 230 Volt
